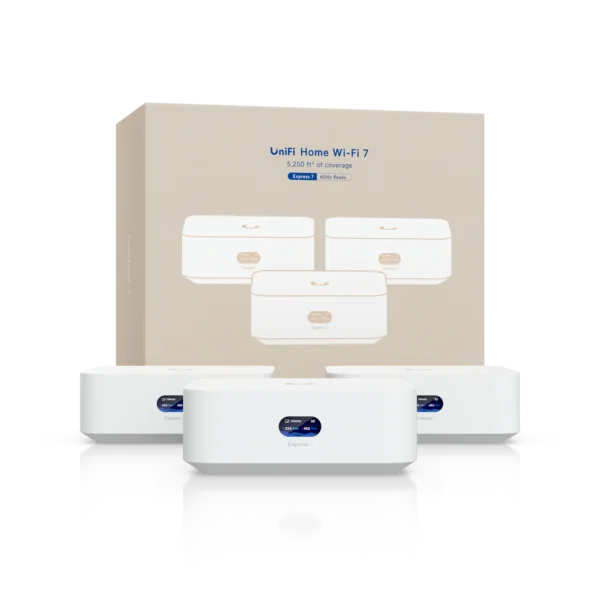

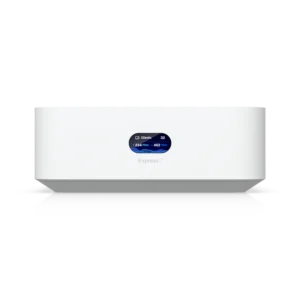

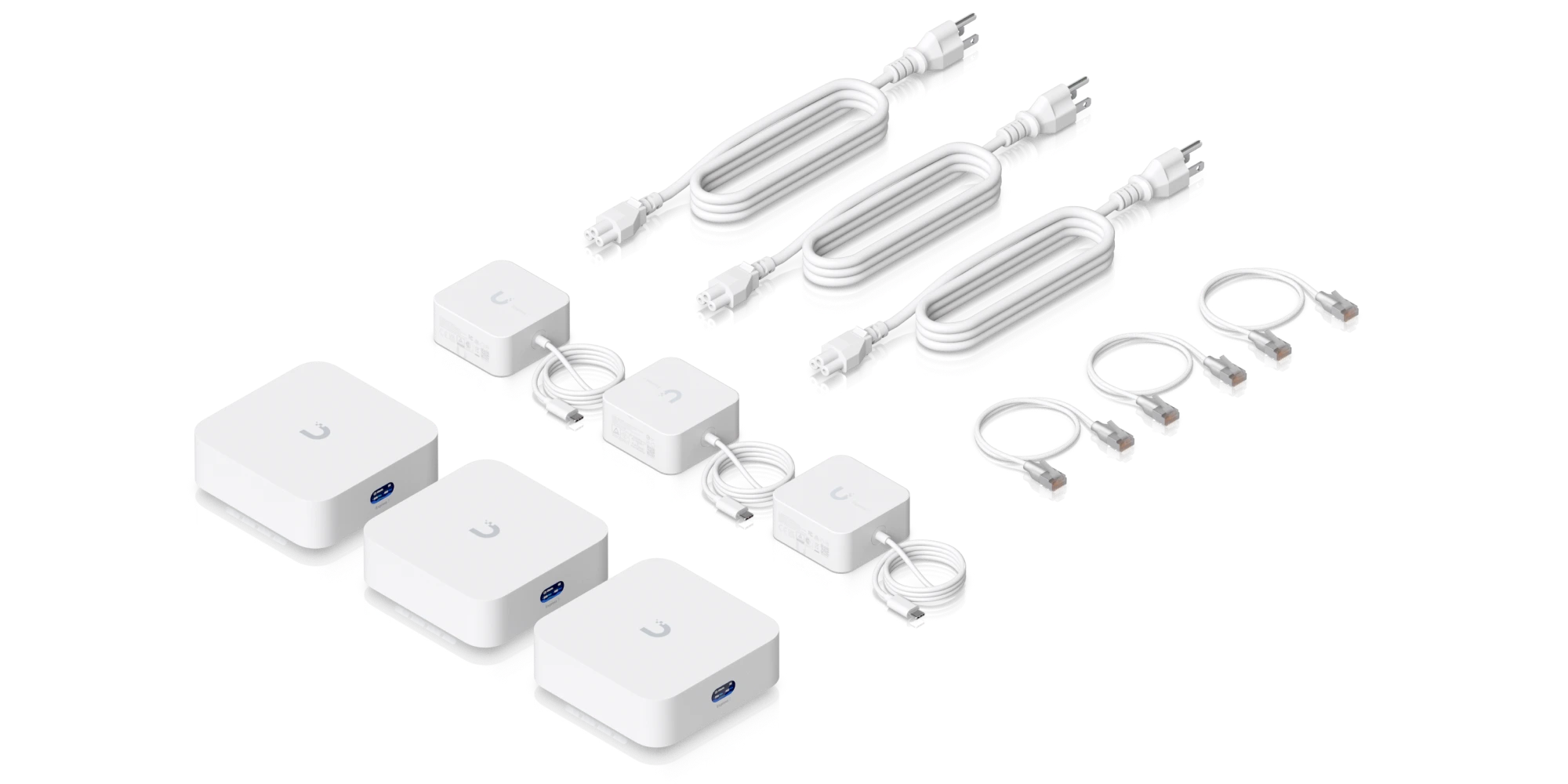

Whole Home WiFi 3‑pack

UX7-3

Mesh-scalable, super-compact 10G Cloud Gateway with integrated 6 GHz WiFi 7. Plug-and-play Whole-Home WiFi with true 10G Multi-Link Operation, intelligent placement guidance, and effortless mesh expansion with additional nodes.

Product successfully added to the Quote List

Overview

Dimensions

117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite

Network ✓

Managed UniFi Devices

30+

Simultaneous Users Connected

300+

Max. WAN Port Count

Default WAN Ports

(1) 10 GbE RJ45

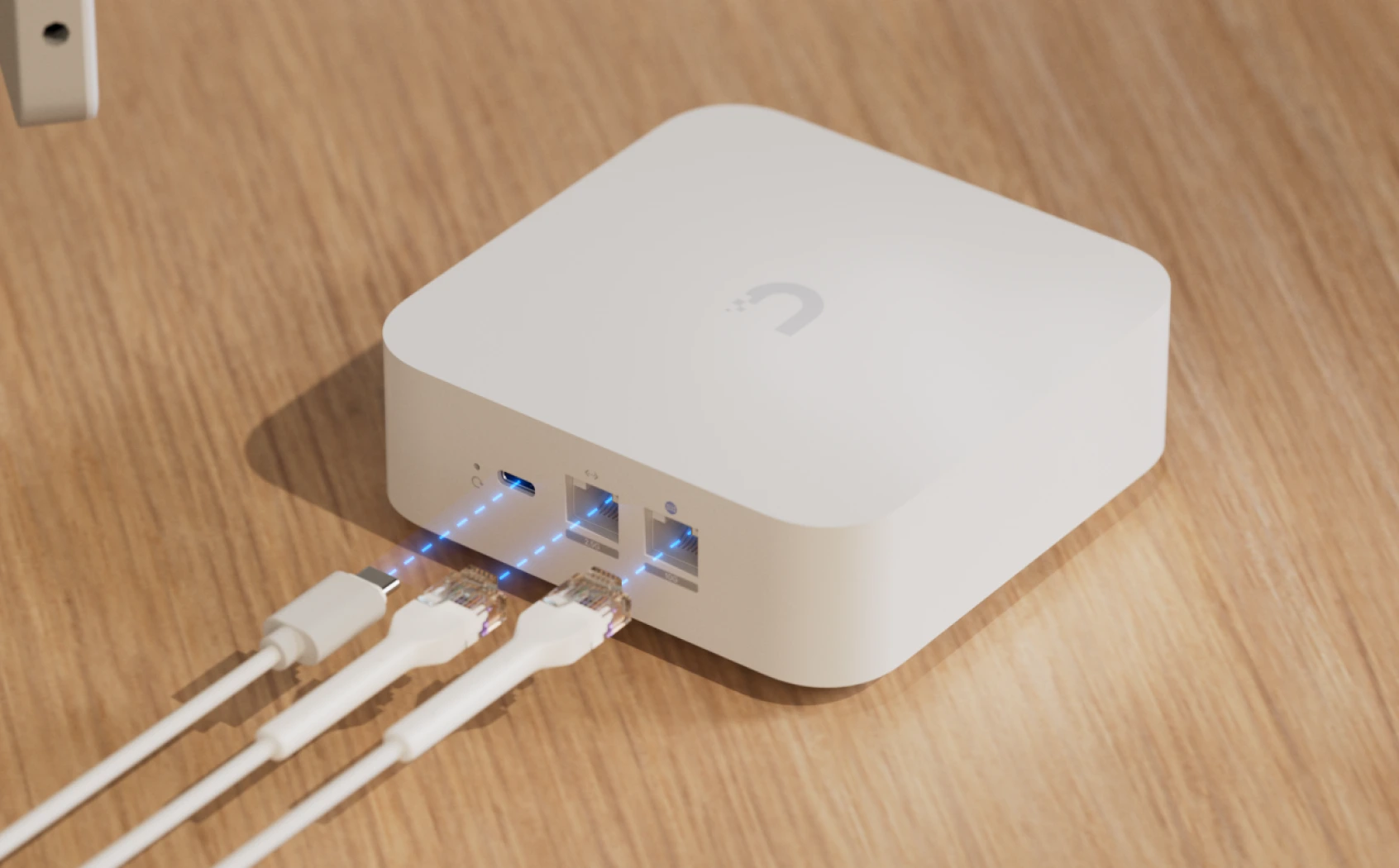

Port Layout

2.5 GbE RJ45: 1 (2.5G/1G/100M/10M)
10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Coverage Area

160 m² (1,750 ft²)

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

✓

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic ✓
IPsec ✓
OpenVPN ✓

VPN Server

Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓

VPN Client

OpenVPN ✓
WireGuard ✓

Networking

Dynamic Routing

OSPF ✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

Virtual Network Override

✓

All Traffic Flows

—

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps

MIMO

6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz: 6 dBi
5 GHz: 7 dBi
2.4 GHz: 4 dBi

Max. TX Power

6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio (Gateway Mode)
4 per Radio (AP Mode)

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

Max. Power Consumption

22W

Power Method

USB type C (5V DC/5A)

Power Supply

USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range

100–240V AC

Heat Dissipation

75 BTU/hr

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

443 g (1 lb)

Enclosure Material

Polycarbonate

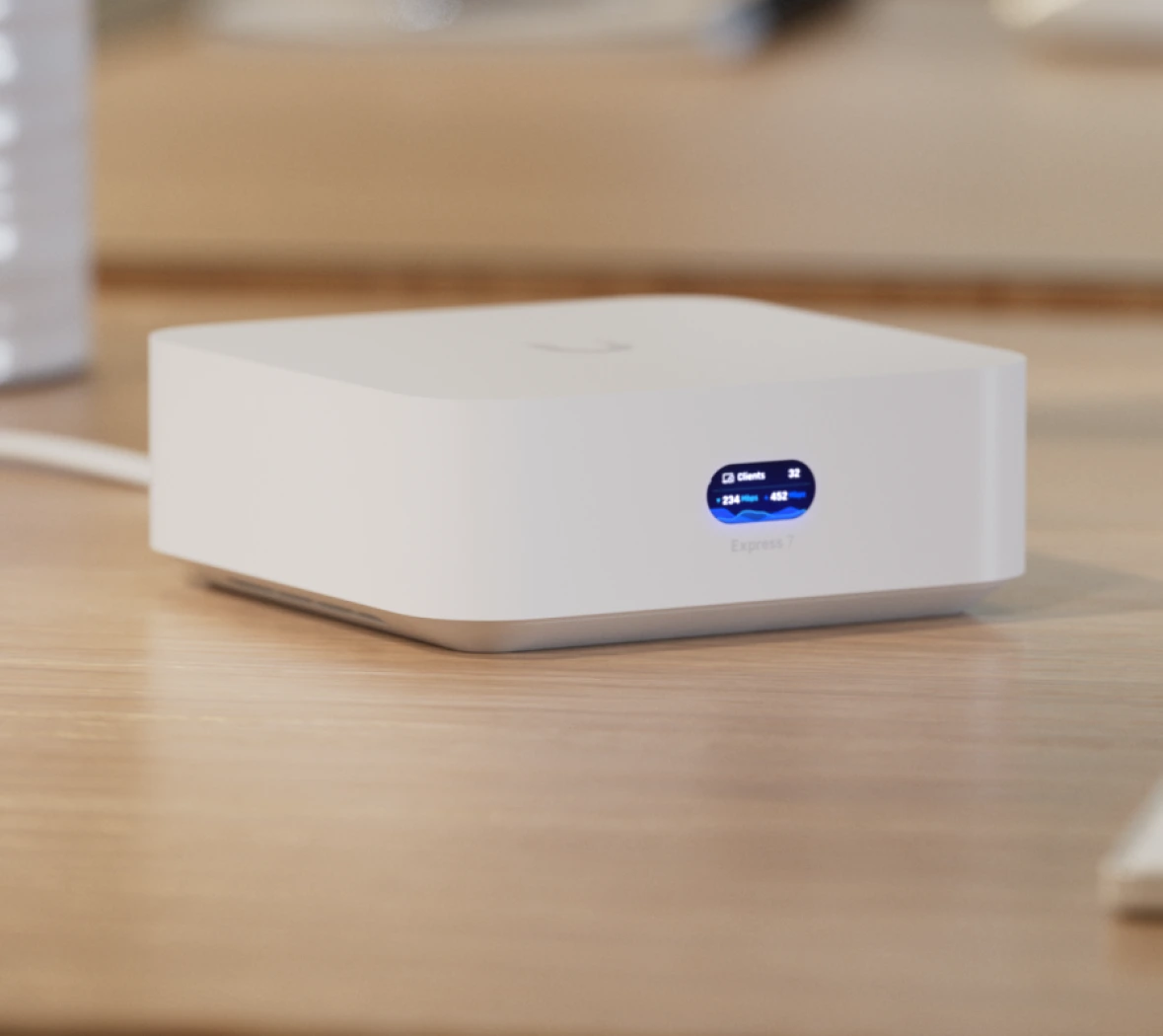

LCM Display

0.96" status display

Management

Ethernet
Bluetooth

LEDs

Ethernet ✓

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

✓

Certifications

CE, FCC, IC, Anatel: 06656-25-08356

Software

VLAN

802.1Q

Guest Traffic Isolation

✓

Application Requirements

UniFi Network: Version 9.0.108 and later
