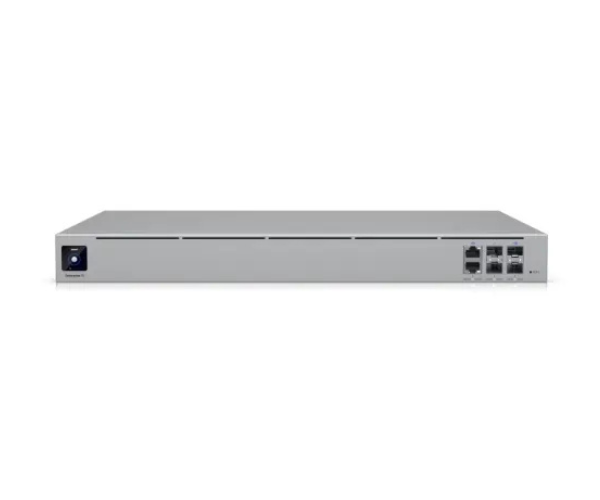

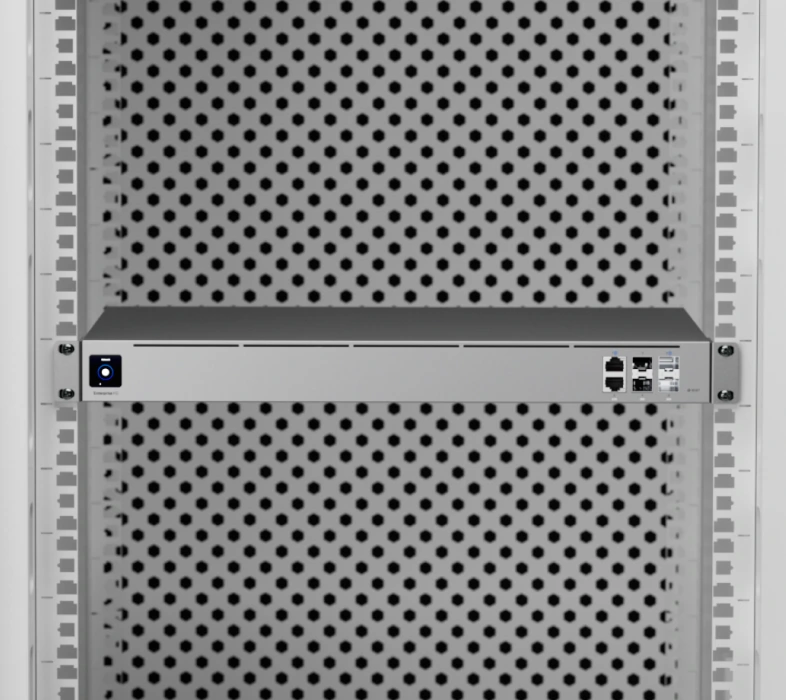

Enterprise Firewall

EFG

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Installation Guide
Data Sheet
Overview
Dimensions
  • 442.4 x 43.7 x 325 mm
  • (17.4 x 1.7 x 12.8")
UniFi Application Suite
  • Network ✓
Managed UniFi Devices
500+
Simultaneous Users Connected
5,000+
Max. WAN Port Count
5
Default WAN Ports
  • (1) 25G SFP28
  • (1) 2.5 GbE RJ45

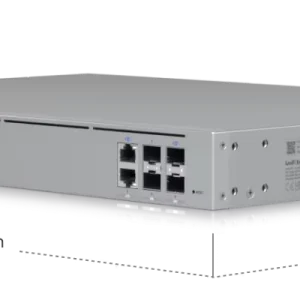

Port Layout
  • 2.5 GbE RJ45: 2 (2.5G/1G/100M/10M)
  • 10G SFP+: 2 (10G/1G)
  • 25G SFP28: 2 (25G/10G/1G)
IDS/IPS Throughput
12.5 Gbps
Capacity
  • SSL/TLS Inspection Concurrent Sessions: 10,000
  • Concurrent Sessions: 10 Million
  • New Sessions / Second: 71,000

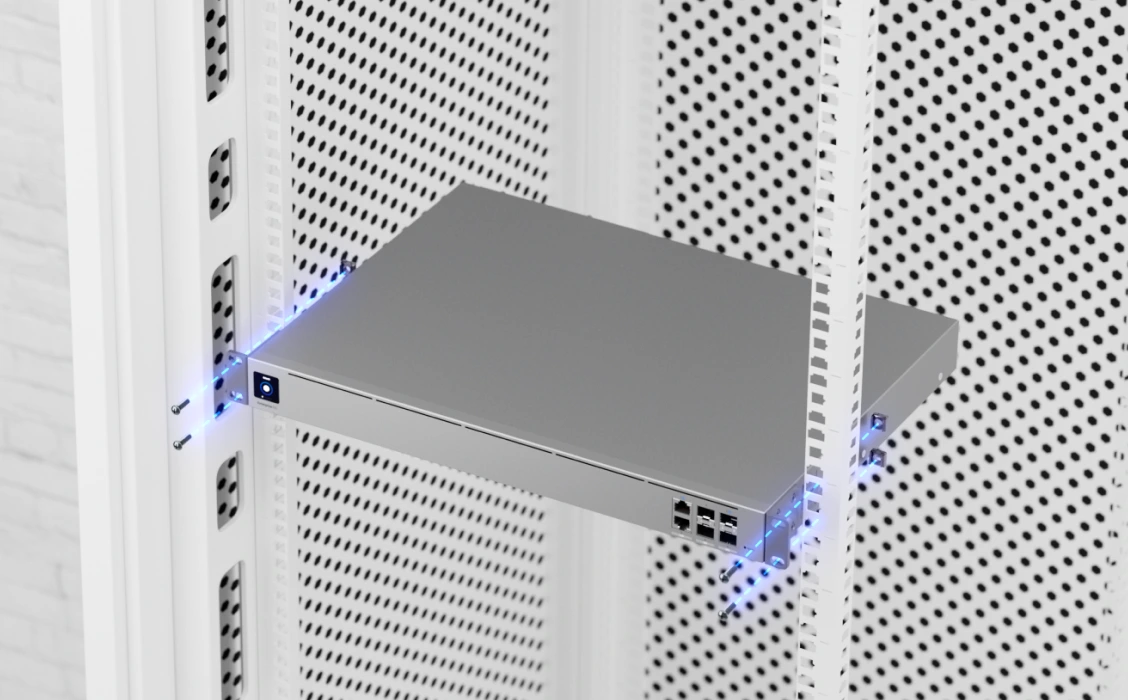

Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover (2) Hot-Swappable PSUs
Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
SSL Inspection & URL Filtering
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
95,000+ with Cyber Secure Enterprise
VLAN/Subnet-based Traffic Segmentation
✓
VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
  • Site Magic ✓
  • IPsec ✓
  • OpenVPN ✓
VPN Server
  • Identity Endpoint One-Click VPN ✓
  • Teleport Zero-Configuration VPN ✓
  • WireGuard ✓
  • OpenVPN ✓
  • L2TP ✓
VPN Client
  • OpenVPN ✓
  • WireGuard ✓
VPN Server Single User Throughput
  • Identity Endpoint One-Click VPN: 1.2 Gbps
  • Teleport: 1.2 Gbps
  • WireGuard: 1.2 Gbps
  • OpenVPN: 210 Mbps
  • L2TP: 280 Mbps
Site-to-Site VPN Single Tunnel Throughput
  • Site Magic: 1.1 Gbps
  • OpenVPN: 120 Mbps
  • IPsec: 580 Mbps
VPN Client Single Tunnel Throughput
  • WireGuard: 980 Mbps
  • OpenVPN: 180 Mbps
Networking
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
LACP Port Aggregation
✓
Dynamic Routing
  • OSPF ✓
  • BGP ✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
All Traffic Flows
✓
Hardware
Max. Power Consumption
82W
Power Method
Universal AC input, 100–240V AC, 7A Max., 50/60 Hz

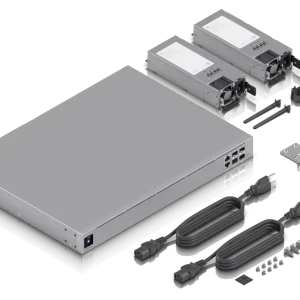

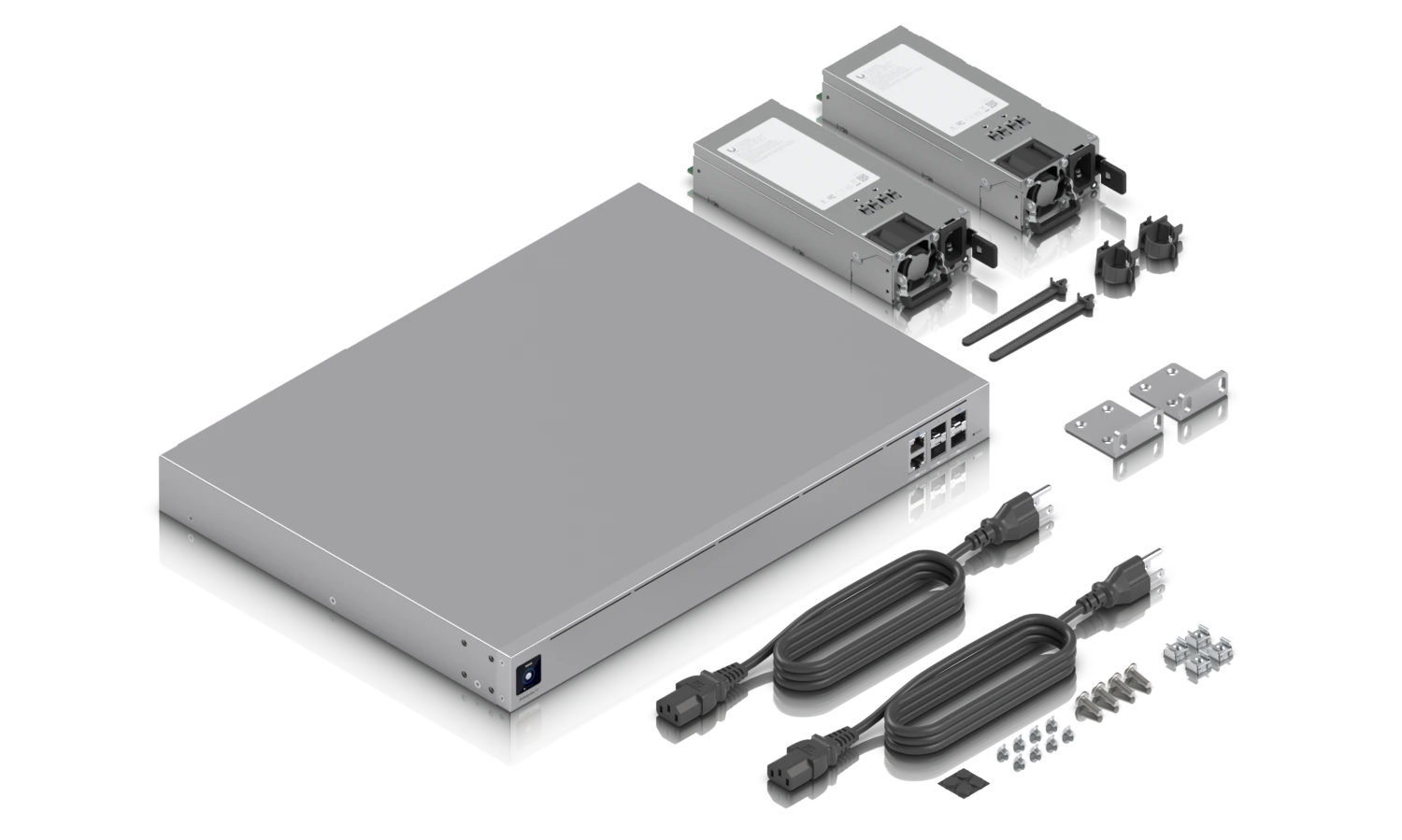

Power Supply
(2) Hot-swappable 150W CRPS
Supported Voltage Range
100–240V AC
Heat Dissipation
280 BTU/hr
Processor
18-core ARM® v8.2 at 2 GHz
Weight
6.5 kg (14.3 lb)
Enclosure Material
Aluminium CNC, SGCC steel
LCM Display
1.3" touchscreen
Management
  • Ethernet
  • Bluetooth
LEDs
  • Ethernet ✓
  • SFP+ ✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
—
Certifications
CE, FCC, IC, Anatel: 06375-24-08356, SRRC
Software
Application Requirements
  • Mobile App: UniFi iOS™:Version 10.16.2 and later UniFi Android™: Version 10.17.2 and later

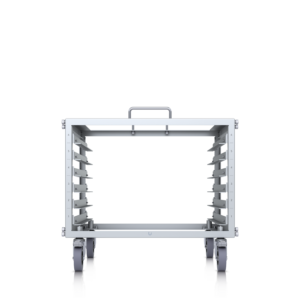

Toolless Mini Rack

Add to Quote

UniFi Patch Cable (10 GbE)

Add to Quote

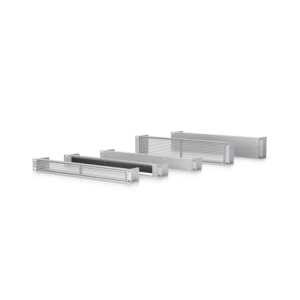

Rack Mount OCD Panels
