Enterprise Firewall Core

EF-Core

Product successfully added to the Quote List

Overview

Dimensions

442.4 x 43.7 x 400 mm
(17.4 x 1.7 x 15.8")

UniFi Application Suite

Network ✓

Managed UniFi Devices

2,250+

Simultaneous Users Connected

22,500+

Max. WAN Port Count

Default WAN Ports

(1) 100G QSFP28
(1) 25G SFP28
(1) 10 GbE RJ45

Port Layout

1 GbE RJ45: 2 (1G/100M/10M)
10 GbE RJ45: 8 (10G/5G/2.5G/1G/100M)
25G SFP28: 4 (25G/10G/1G)
100G QSFP28: 4 (100G/40G)
MGMT: 1 (1G/100M/10M)
Console: 1

IDS/IPS Throughput

79 Gbps

Capacity

SSL/TLS Inspection Concurrent Sessions: 10,000
Concurrent Sessions: 10 Million
New Sessions / Second: 120,000

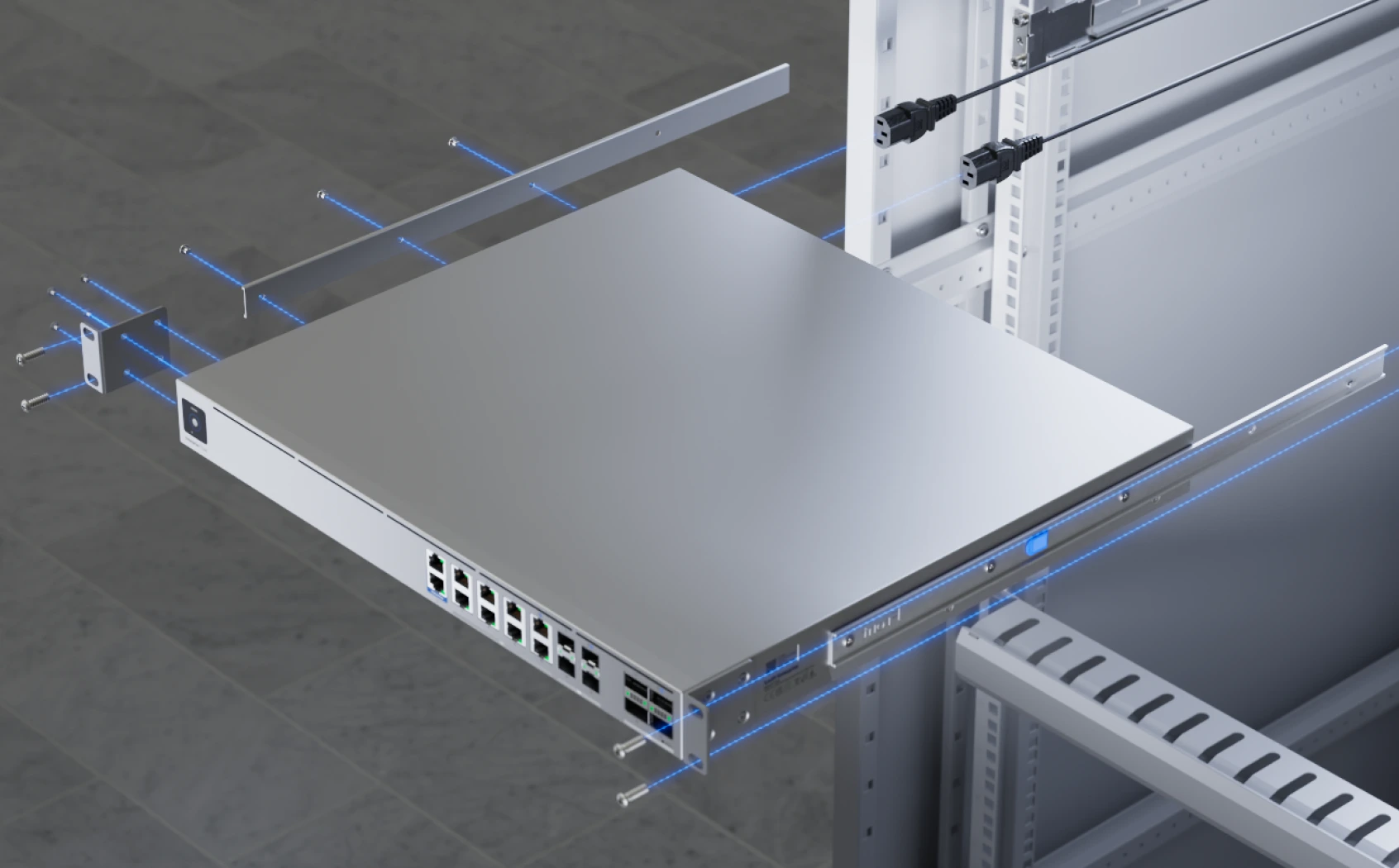

Form Factor

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway Failover (2) Hot-Swappable PSUs

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

SSL Inspection & URL Filtering

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

95,000+ with CyberSecure Enterprise

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic ✓
IPsec ✓
OpenVPN ✓

VPN Server

Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓

VPN Client

OpenVPN ✓
WireGuard ✓

Networking

Multi-WAN Load Balancing

✓

Shadow Mode (VRRP) High Availability

✓

LACP Port Aggregation

✓

Dynamic Routing

OSPF ✓
BGP ✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

130,000

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

All Traffic Flows

✓

Hardware

Max. Power Consumption

171W

Power Method

Universal AC input, 100–240V AC, 7.5A Max., 50/60 Hz

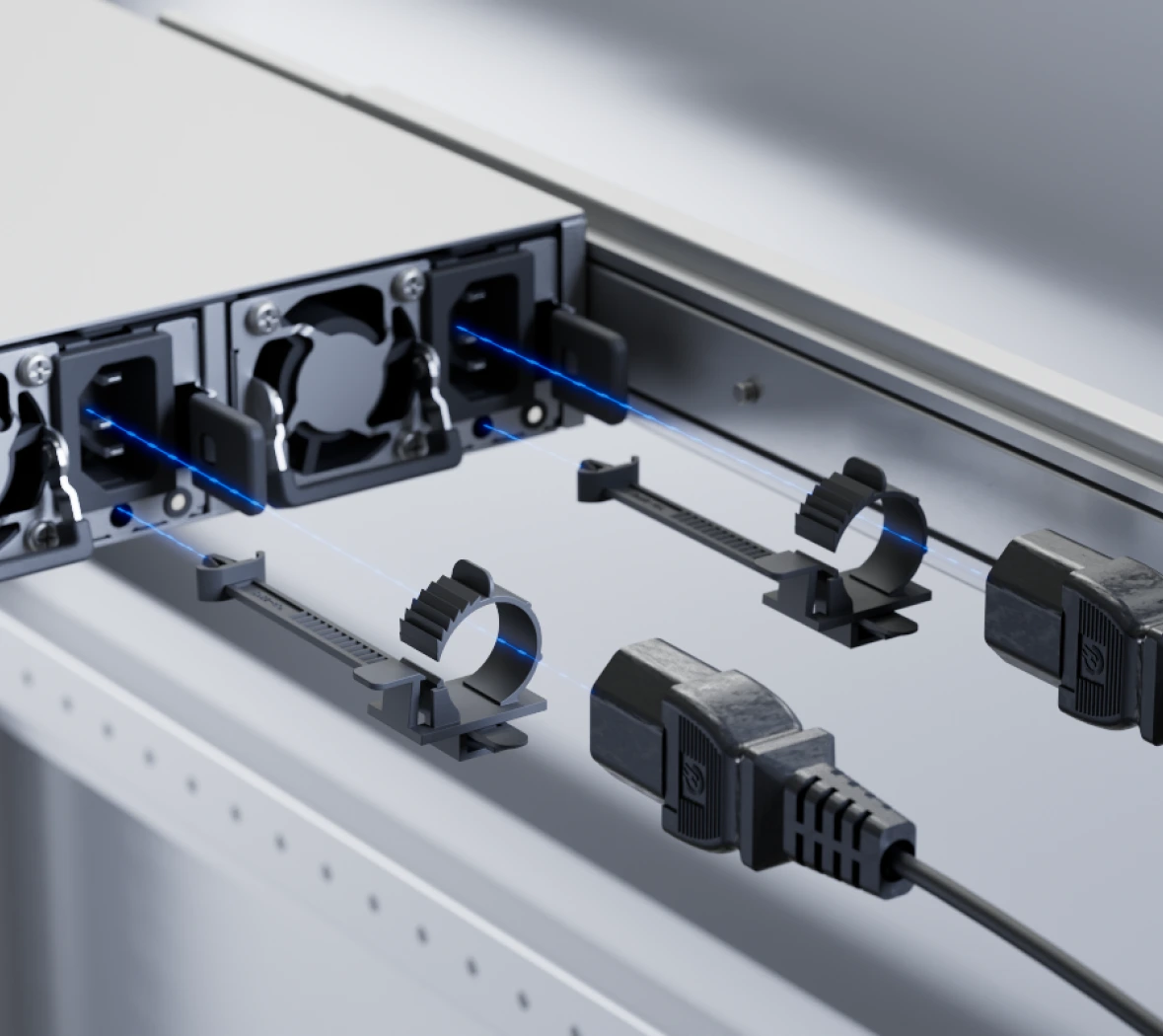

Power Supply

(2) Hot-Swappable AC/DC 550W PSU

Supported Voltage Range

100–240V AC

Heat Dissipation

585 BTU/hr

Processor

24-core ARM® v9 at 2.5 GHz

System Memory

32 GB

On-board Storage

Integrated 128 GB SSD

Weight

7.85 kg (17.31 lb)

Enclosure Material

Aluminium CNC, SGCC steel

LCM Display

1.3" touchscreen

Management

Ethernet
Bluetooth

LEDs

Ethernet ✓
SFP28 ✓
QSFP28 ✓
Swappable Fan ✓
CRPS ✓

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Software

Application Requirements

Mobile App: UniFi iOS™: Version 10.35.0 and later / UniFi Android™: Version 10.38.1 and later

Toolless Mini Rack

UniFi Patch Cable (10 GbE)

Rack Mount OCD Panels

WAN Switch

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a singl...

UniFi Premium Patch Cable

Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.

42U Rack Cabinet, 1,000 mm, Glass Door

10G Single-Mode Optical Module

10G Direct Attach Cable

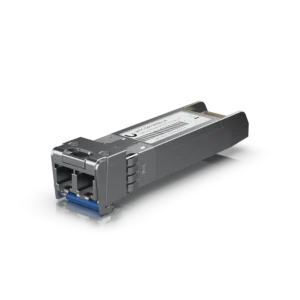

25G Single-Mode Optical Module
