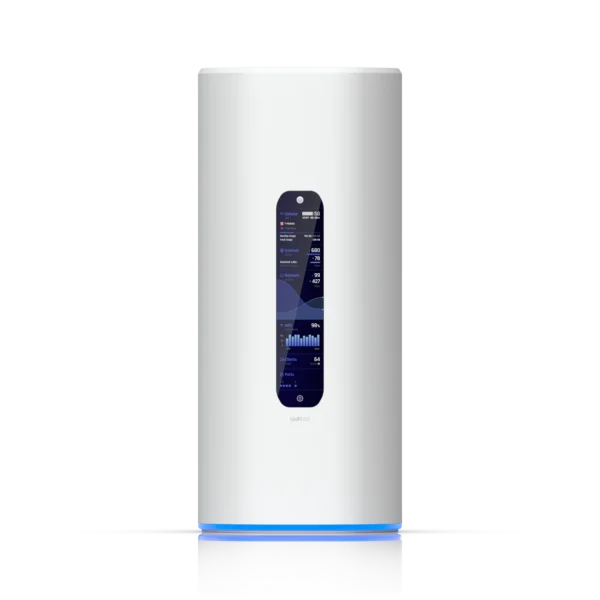

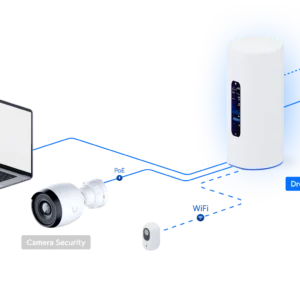

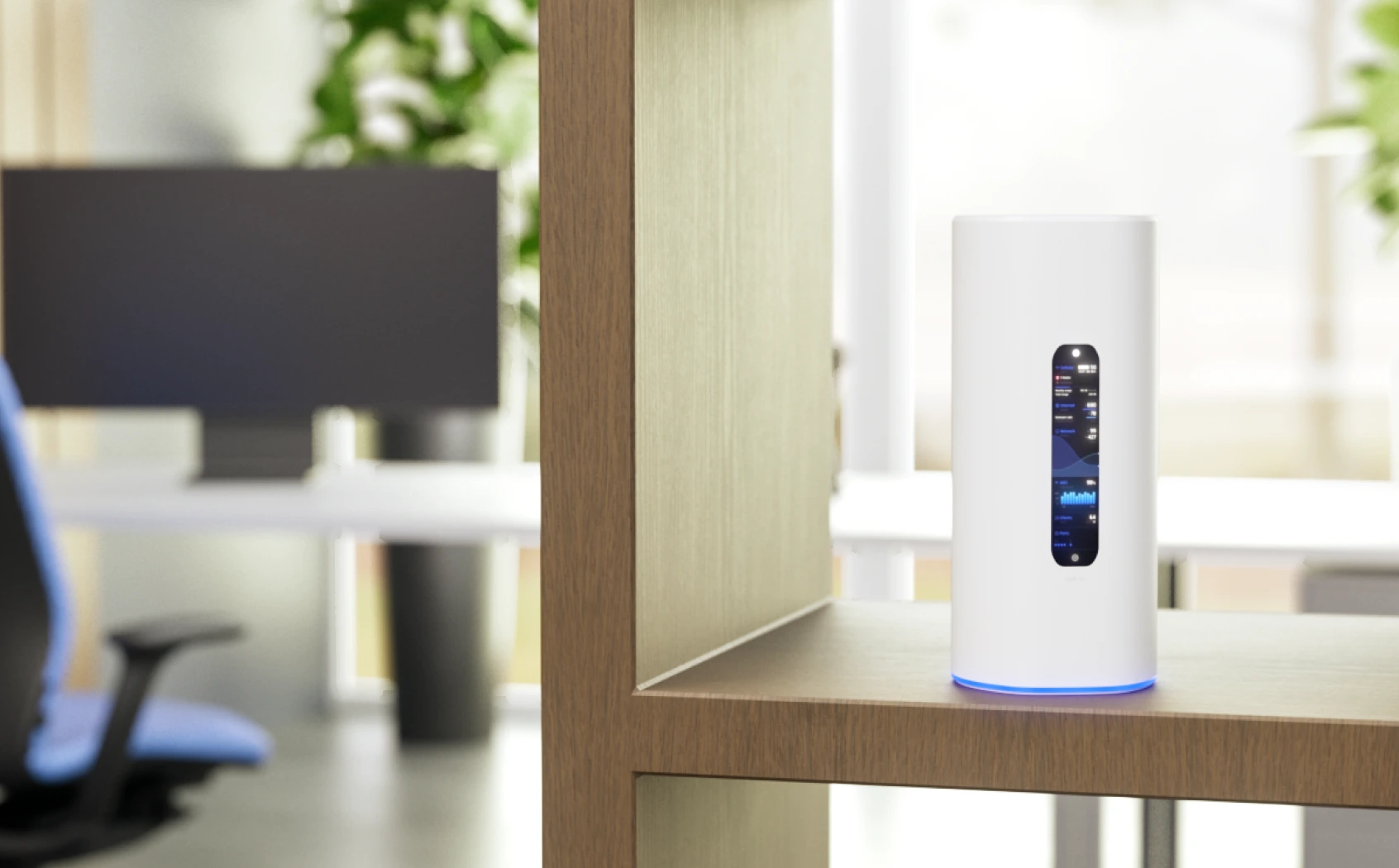

Dream Router 5G Max

UDR-5G-Max (15W)

Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.

Product successfully added to the Quote List

Overview

Dimensions

110 x 110 x 250 mm (4.3 x 4.3 x 9.8")

UniFi Application Suite

Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓

Managed UniFi Devices

30+

Managed Cameras

(5) HD
(2) 2K
(1) 4K

Simultaneous Users Connected

300+

Max. WAN Port Count

Default WAN Ports

(1) 10G SFP+
(1) 2.5 GbE RJ45

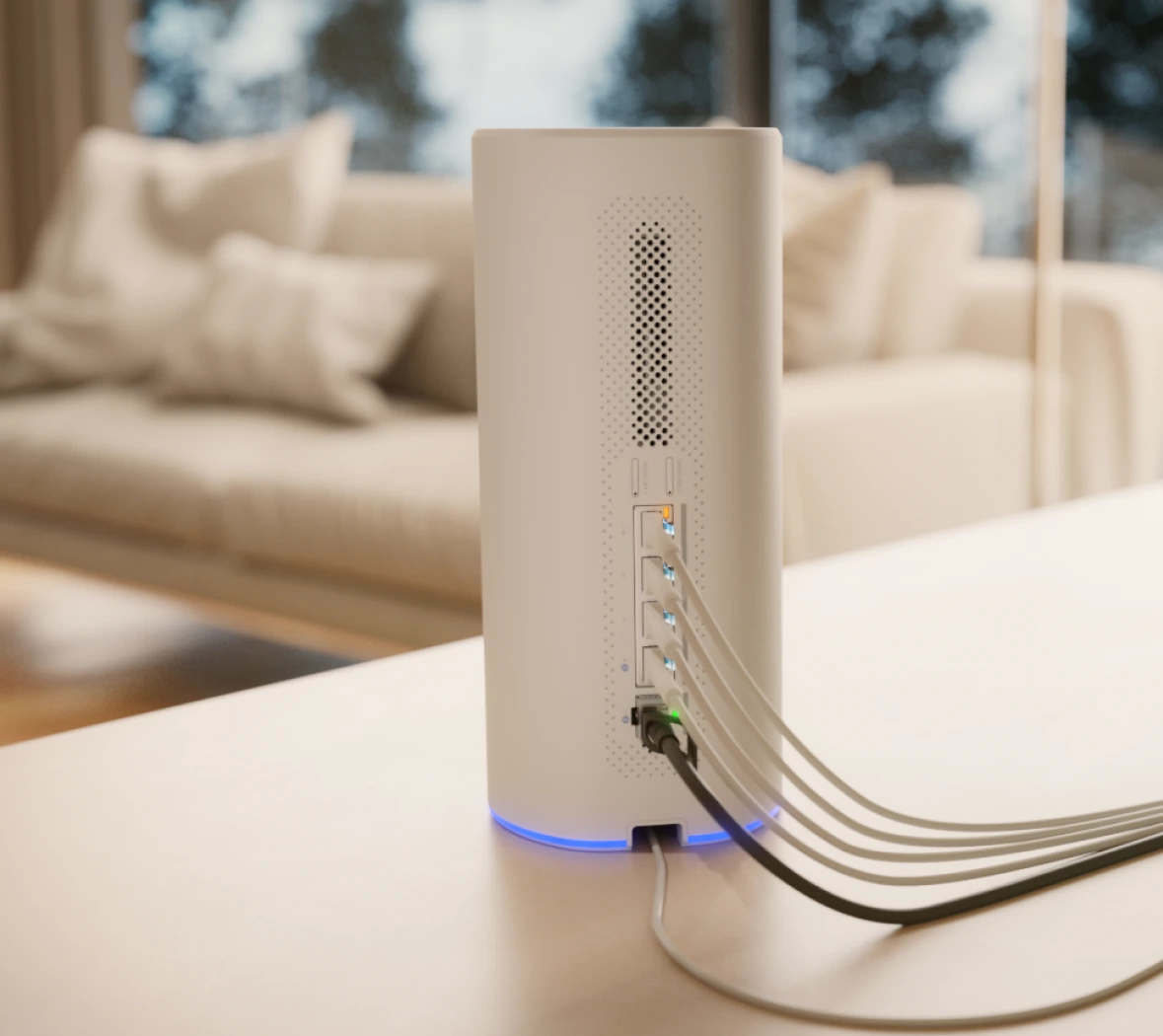

Port Layout

2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M)
10G SFP+: 1 (10G/1G)

IDS/IPS Throughput

2.3 Gbps

Form Factor

Desktop

Coverage Area

160 m² (1,750 ft²)

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

20,000+ with CyberSecure

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic ✓
IPsec ✓
OpenVPN ✓

VPN Server

Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓

VPN Client

OpenVPN ✓
WireGuard ✓

Site-to-Site VPN Single Tunnel Throughput

Site Magic: 20

VPN Client Single Tunnel Throughput

WireGuard: 8
OpenVPN: 8

Networking

Multi-WAN Load Balancing

✓

Dynamic Routing

OSPF ✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

2,000

Virtual Network Override

✓

All Traffic Flows

—

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps

MIMO

6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz: 8 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi

Max. TX Power

6 GHz: 22 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Cellular

5G NR

Category: 5G NR Sub-6
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power: HPUE power class 2: 26 dBm

4G LTE

Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power: HPUE power class 2: 25 dBm

3G UMTS

Frequency Bands: B1, B2, B4, B5, B8, B19

Peak Data Speed

5G NSA: Downlink 3.4 Gbps Uplink 560 Mbps
5G SA: Downlink 1.8 Gbps Uplink 650 Mbps
4G LTE: Downlink 1.6 Gbps Uplink 210 Mbps

Antenna Gain

617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi

SIM

(1) Nano-SIM or eSIM
(2) Nano SIM

Hardware

NVR Storage

Pre-installed 64 GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

15.4W

Max. PoE Wattage per Port by PSE

PoE: 15.4W

Voltage Range PoE Mode

44–57V

Max. Power Consumption

34.5W (Excluding PoE output)

Power Method

DC jack (54V DC/1.1A)

Power Supply

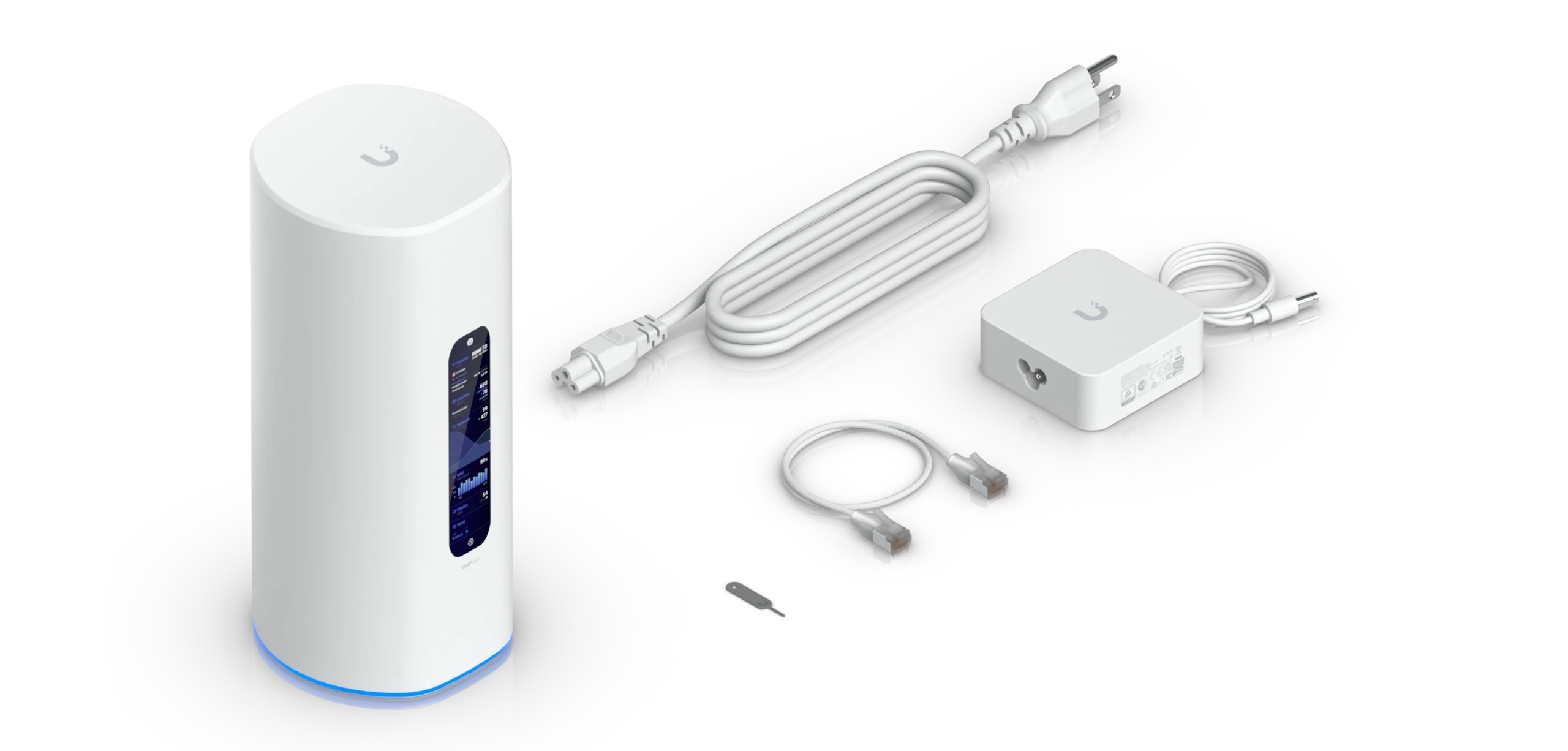

54V DC/1.1A (Adapter included)

Supported Voltage Range

100–240V AC

Heat Dissipation

115 BTU/hr (Excluding PoE output)

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

1.4 kg (3.1 lb)

Enclosure Material

Polycarbonate

LCM Display

4.7" touchscreen

Management

Ethernet
Bluetooth

LEDs

Ethernet ✓
SFP+ ✓
System ✓

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®

Software

Application Requirements

Mobile App: UniFi iOS™: Version 10.33.0 and later UniFi Android™: Version 10.36.1 and later

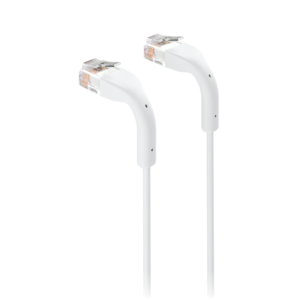

UniFi Patch Cable (10 GbE)

UniFi Premium Patch Cable

Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.

UniFi Etherlighting Patch Cable

Nano-thin patch cable with 10 GbE support, designed to showcase Etherlighting™ effects.

Dream Router 5G Max

Product successfully added to the Quote List

UniFi Patch Cable (10 GbE)

UniFi Premium Patch Cable

UniFi Etherlighting Patch Cable

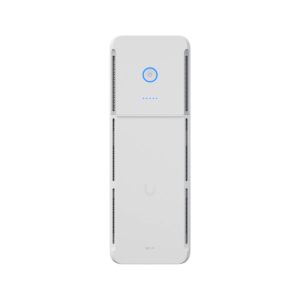

UPS Tower

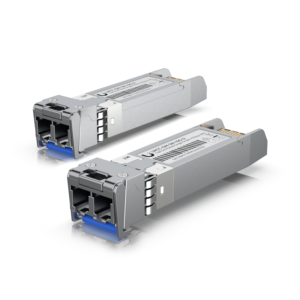

10G Single-Mode Optical Module

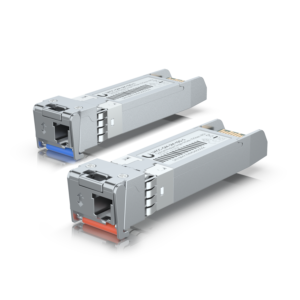

10G Bidirectional Single-Mode Optical Module

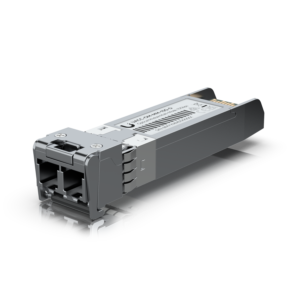

10G Multi-Mode Optical Module
