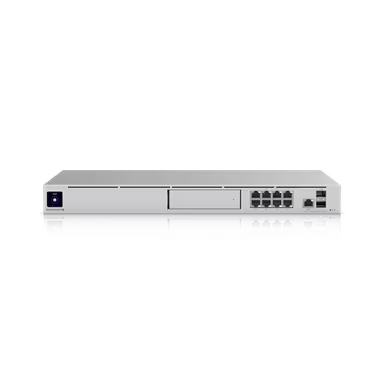

Dream Machine Special Edition

UDM-SE (180W)

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Installation Guide
Data Sheet
Overview
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite
  • Network ✓
  • Protect ✓
  • Access ✓
  • Talk ✓
  • Connect ✓
Managed UniFi Devices
100+
Managed Cameras
  • (24) HD
  • (14) 2K
  • (8) 4K
Managed Access Hubs
150
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
  • (1) 10G SFP+
  • (1) 2.5 GbE RJ45
Port Layout
  • 1 GbE RJ45: 8 (1G/100M/10M)
  • 2.5 GbE RJ45: 1 (2.5G/1G/100M/10M)
  • 10G SFP+: 2 (10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor

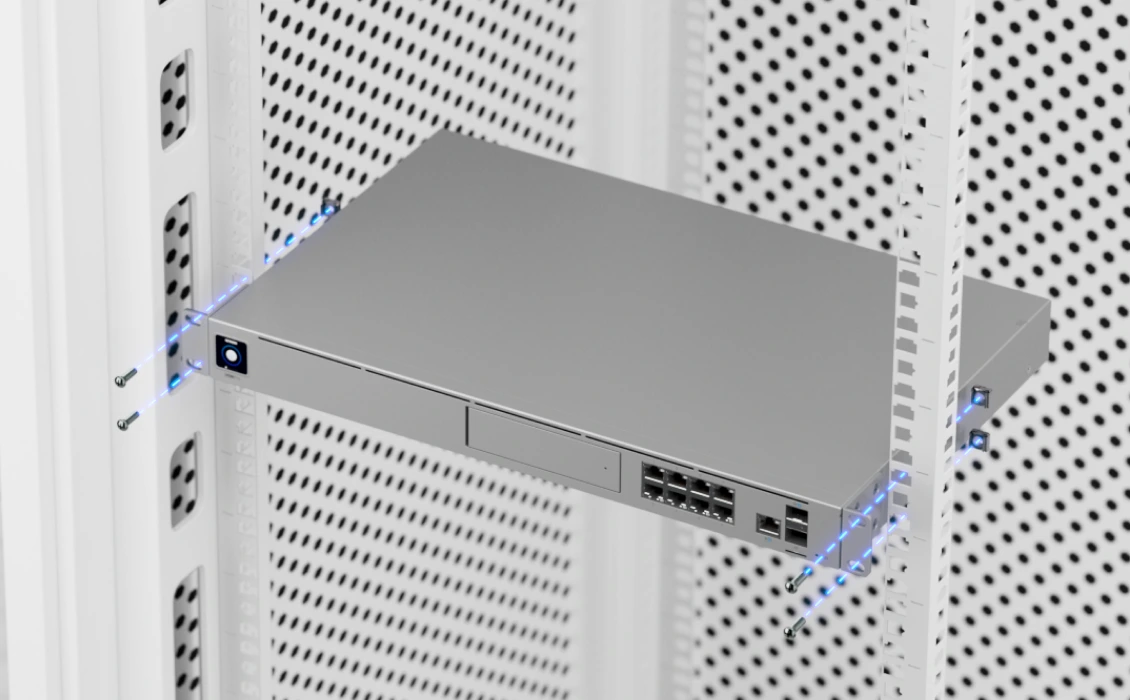

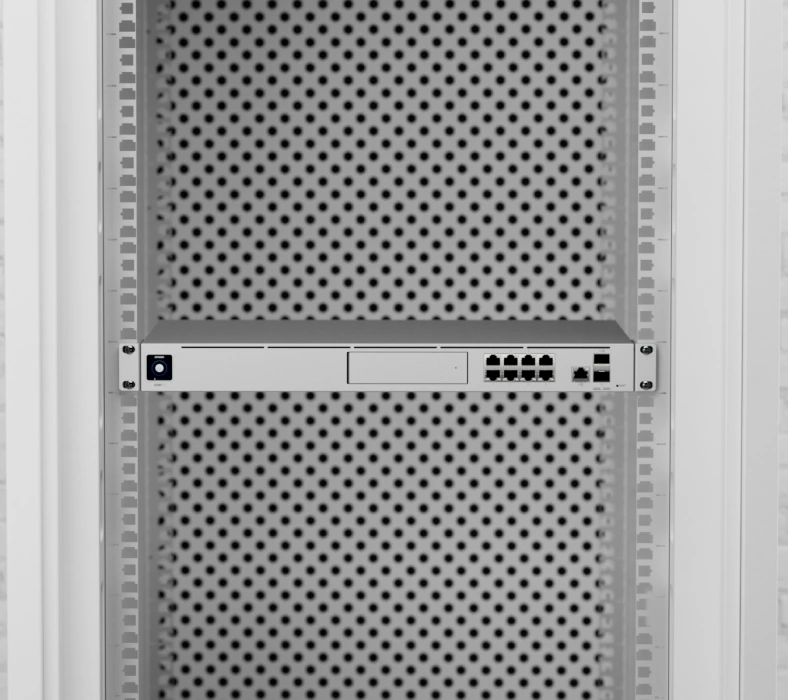

Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup
Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓
VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
  • Site Magic ✓
  • IPsec ✓
  • OpenVPN ✓
VPN Server
  • Identity Endpoint One-Click VPN ✓
  • Teleport Zero-Configuration VPN ✓
  • WireGuard ✓
  • OpenVPN ✓
  • L2TP ✓
VPN Client
  • OpenVPN ✓
  • WireGuard ✓
Networking
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
LACP Port Aggregation
✓
Dynamic Routing
  • OSPF ✓
  • BGP ✓
Advanced QoS
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
✓
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
All Traffic Flows
✓
Hardware
NVR Storage
(1) 3.5" NVR HDD bay Built-in 128 GB SSD for Faster Experience
PoE Budget
180W
Max. PoE Wattage per Port by PSE
  • PoE: 15.4W
  • PoE+: 30W
Voltage Range PoE Mode
  • PoE: 44-57V
  • PoE+: 50-57V
Max. Power Consumption
50W (Excluding PoE Output)
Power Method
  • (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz
  • (1) USP-RPS DC input, 52V DC, 3.94A
Power Supply
AC/DC, internal, 240W
Supported Voltage Range
100–240V AC
Heat Dissipation
170 BTU/hr (Excluding PoE Output)
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
  • 16 GB eMMC
  • 128 GB SSD (Integrated)
Weight
5 kg (10.9 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
  • Ethernet
  • Bluetooth
LEDs
  • Ethernet ✓
  • SFP+ ✓
  • RPS ✓
  • PSU ✓
  • HDD ✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 07309-22-08356, SRRC
