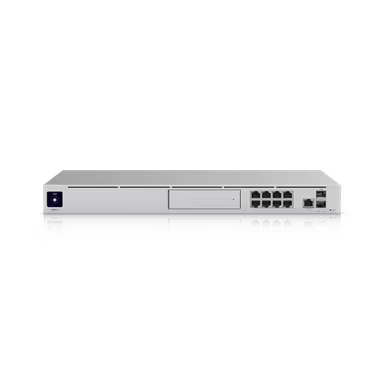

Dream Machine Pro

UDM-Pro

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.

Installation Guide
Overview

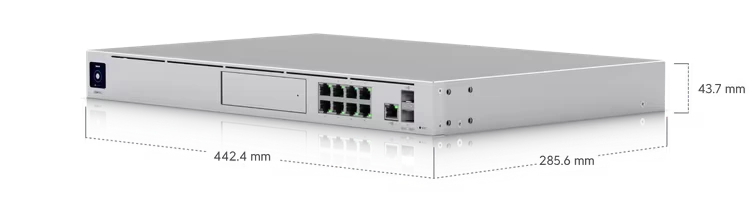

Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite
  • Network: YES
  • Protect: YES
  • Access: YES
  • Talk: YES
  • Connect: YES
Managed UniFi Devices
200+
Managed Cameras
  • (50) HD
  • 25) 2K
  • (15) 4K
Managed Access Hubs
150
Simultaneous Users Connected
2,000+
Max. WAN Port Count
8
Default WAN Ports
  • (1) 10G SFP+
  • (1) 2.5 GbE RJ45
Port Layout
  • 1 GbE RJ45: 8 (1G/100M/10M)
  • 2.5 GbE RJ45: 1 (2.5G/1G/100M/10M)
  • 10G SFP+: 2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup
