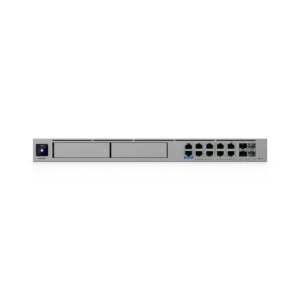

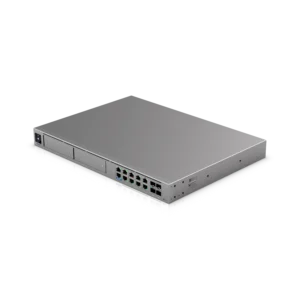

Dream Machine Beast

UDM-Beast

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Product successfully added to the Quote List

Overview

Dimensions

442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")

UniFi Application Suite

Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓

Managed UniFi Devices

750+

Managed Cameras

(100) HD
(60) 2K
(40) 4K

Managed Access Hubs

200

Simultaneous Users Connected

7,500+

Max. WAN Port Count

Default WAN Ports

(1) 25G SFP28
(1) 10 GbE RJ45

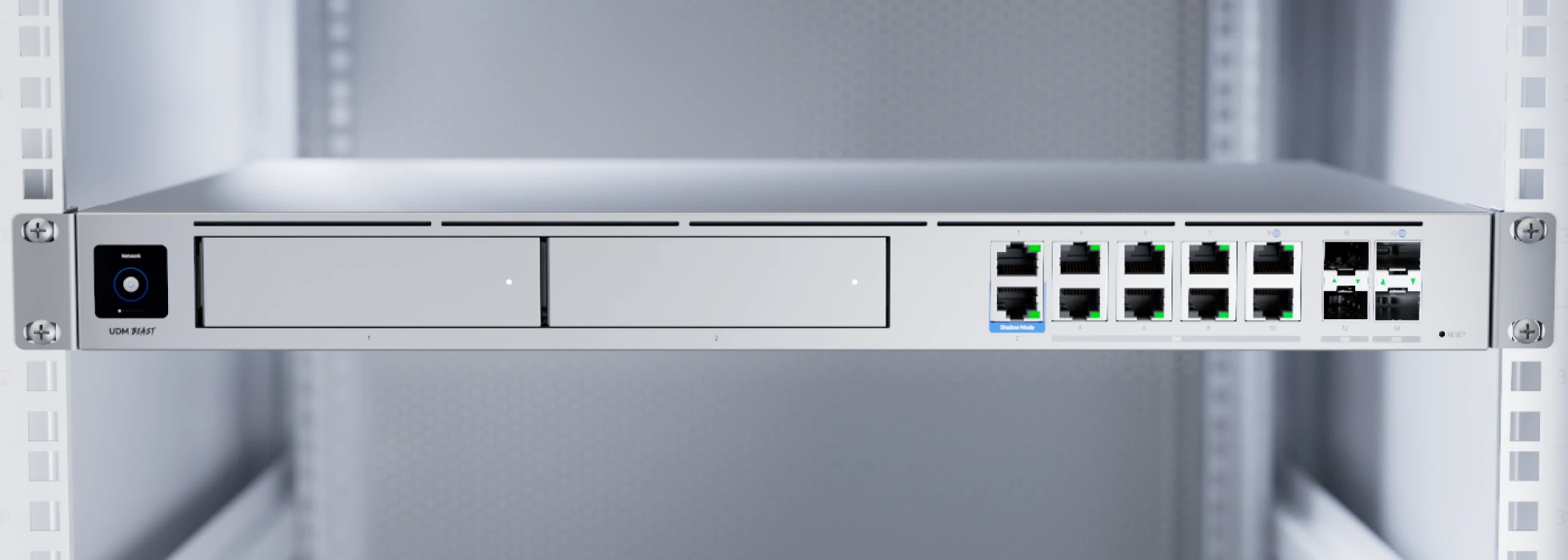

Port Layout

1 GbE RJ45: 2 (1G/100M/10M
10 GbE RJ45: 8 (10G/5G/2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
25G SFP28: 2 (25G/10G/1G)
Console: 1

IDS/IPS Throughput

25 Gbps

Form Factor

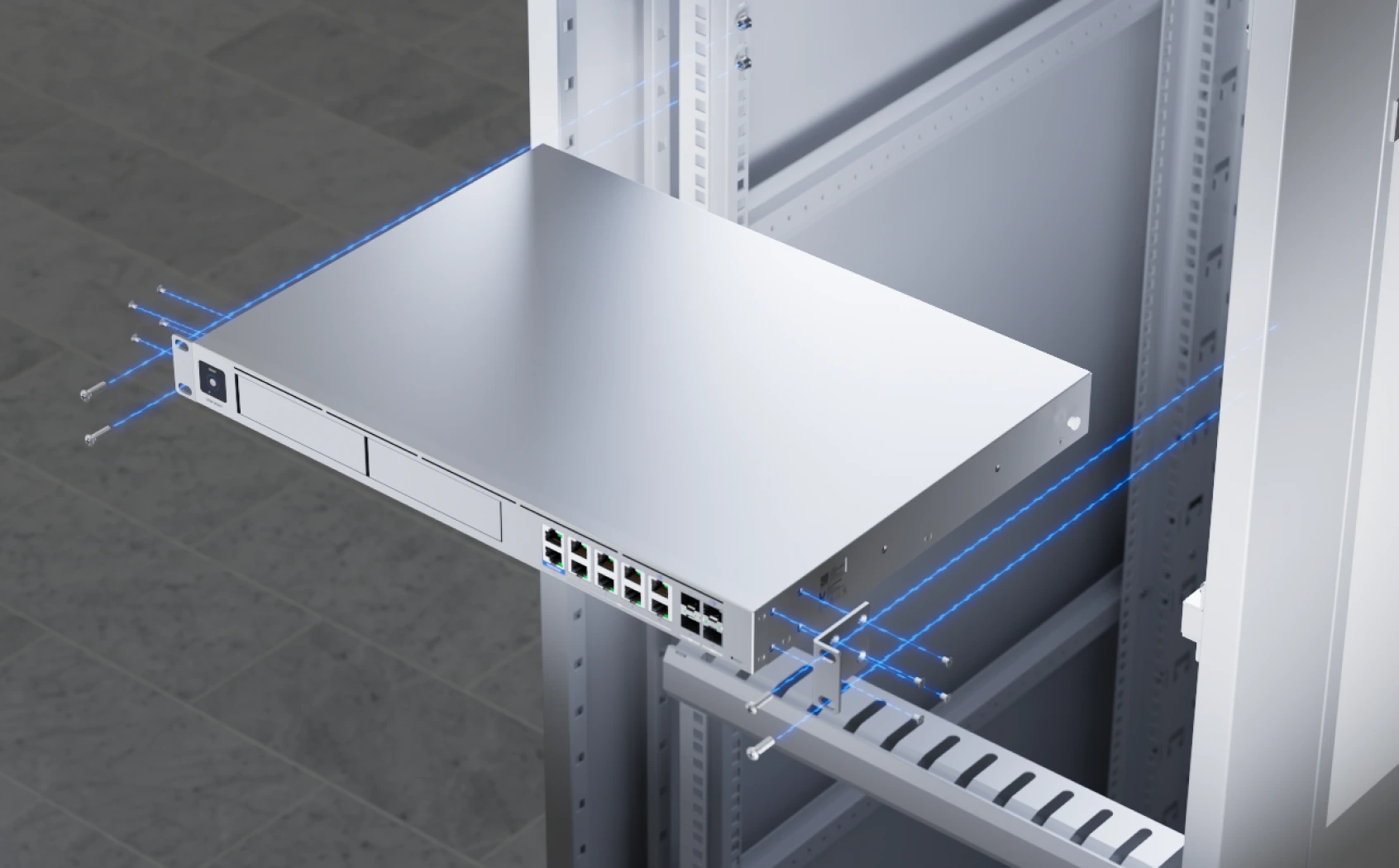

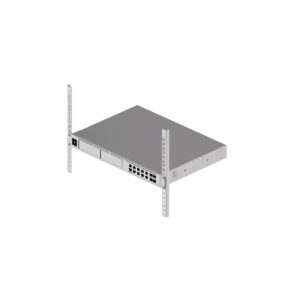

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway Failover DC Power Backup

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

55,000+ with CyberSecure

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic ✓
IPsec ✓
OpenVPN ✓

VPN Server

Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓

VPN Client

OpenVPN ✓
WireGuard ✓

Networking

Multi-WAN Load Balancing

✓

Shadow Mode (VRRP) High Availability

✓

LACP Port Aggregation

✓

Dynamic Routing

OSPF ✓
BGP ✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

32,000

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

All Traffic Flows

✓

Hardware

NVR Storage

(2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience

Max. Power Consumption

100W

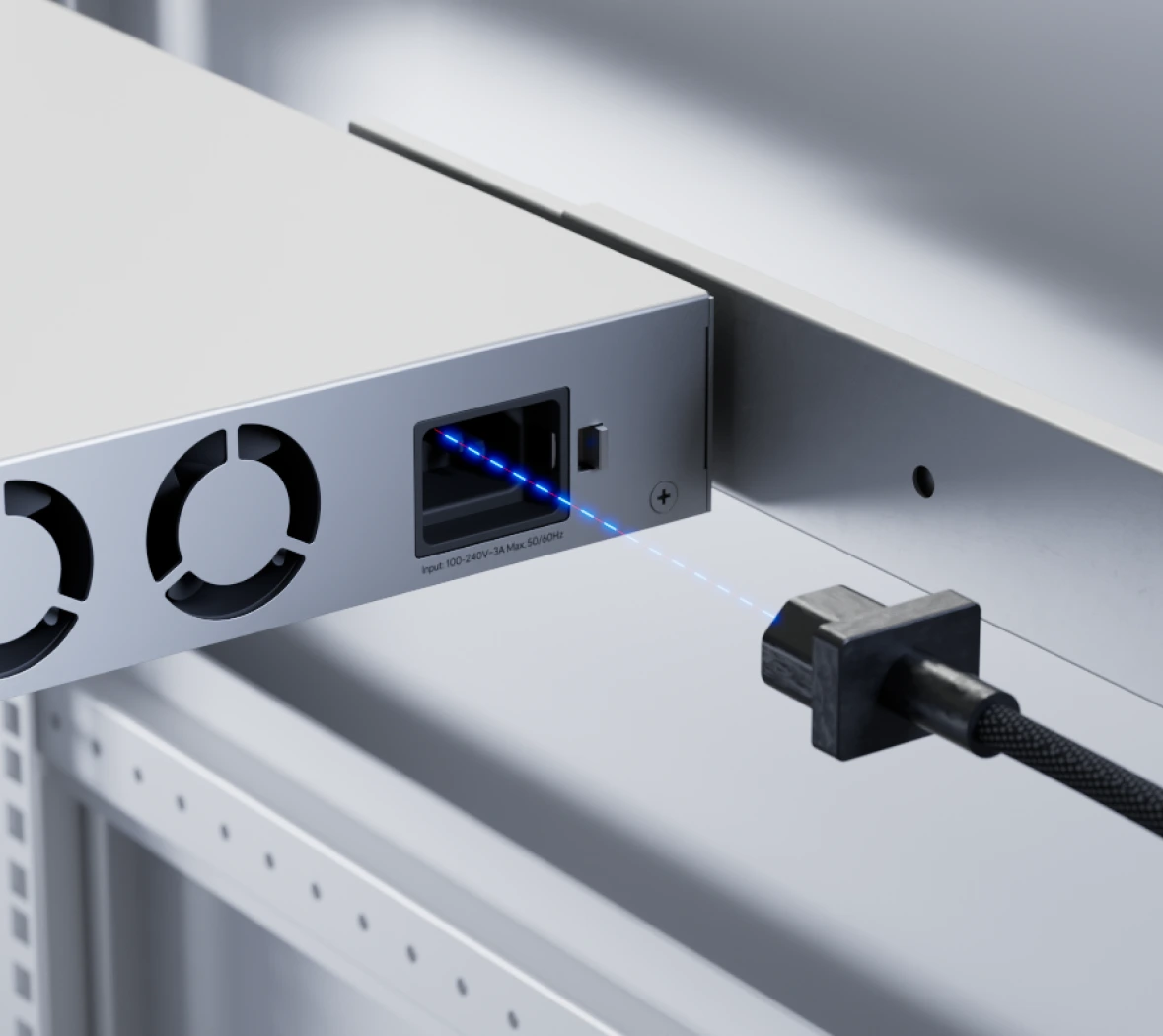

Power Method

(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.05A

Power Supply

AC/DC, internal, 150W

Supported Voltage Range

100–240V AC

Heat Dissipation

342 BTU/hr

Processor

Octa-core ARM® v9 at 2.1 GHz

System Memory

16 GB

On-board Storage

Integrated 128 GB SSD

Weight

5.5 kg (12.13 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

LCM Display

1.3" touchscreen

Management

Ethernet
Bluetooth

LEDs

Ethernet ✓
SFP+ ✓
SFP28 ✓
RPS ✓
HDD ✓

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Software

Application Requirements

Mobile App: UniFi iOS™: Version 10.34.0 and later UniFi Android™: Version 10.37.1 and later

Toolless Mini Rack

UniFi Patch Cable (10 GbE)

WAN Switch

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a singl...

10G Single-Mode Optical Module

10G Bidirectional Single-Mode Optical Module

UniFi Etherlighting Patch Cable

Nano-thin patch cable with 10 GbE support, designed to showcase Etherlighting™ effects.

WAN Switch RJ45

10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ...

Dream Machine Beast

Product successfully added to the Quote List

Toolless Mini Rack

UniFi Patch Cable (10 GbE)

WAN Switch

10G Single-Mode Optical Module

10G Bidirectional Single-Mode Optical Module

UniFi Etherlighting Patch Cable

WAN Switch RJ45

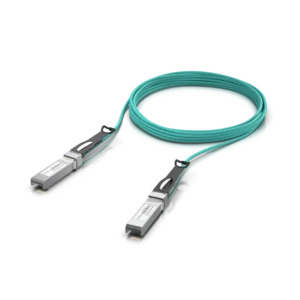

10G Long-Range Direct Attach Cable

10G Multi-Mode Optical Module

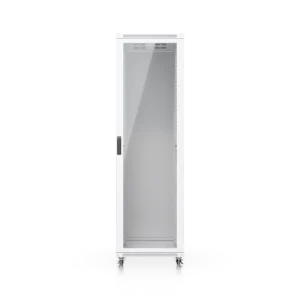

42U Rack Cabinet, 1,000 mm, Glass Door

25G Long-Range Direct Attach Cable

42U Rack Cabinet

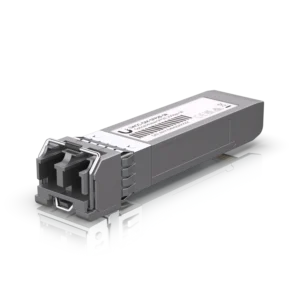

25G Multi-Mode Optical Module
