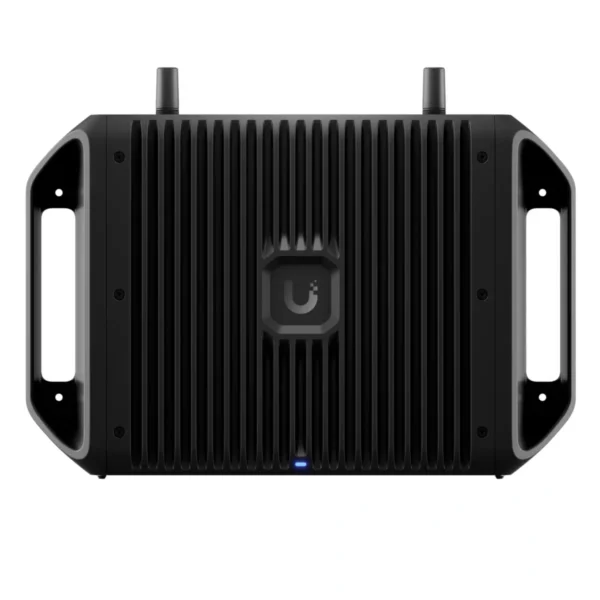

Cloud Gateway Industrial

UCG-Industrial (270W)

Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

Product successfully added to the Quote List

Overview

Dimensions

Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7")
Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")

UniFi Application Suite

Network ✓
Protect ✓
Access ✓
Talk ✓
Connect ✓

Managed UniFi Devices

50+

Managed Cameras

(15) HD
(8) 2K
(5) 4K

Managed Access Hubs

Simultaneous Users Connected

500+

Max. WAN Port Count

Default WAN Ports

(1) 10G SFP+
(1) 10 GbE RJ45
(1) 2.5 GbE RJ45

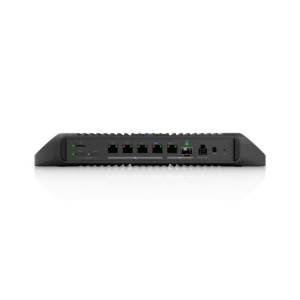

Port Layout

2.5 GbE RJ45: 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M)
10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M
10G SFP+: 1 (10G/1G)

IDS/IPS Throughput

5 Gbps

Form Factor

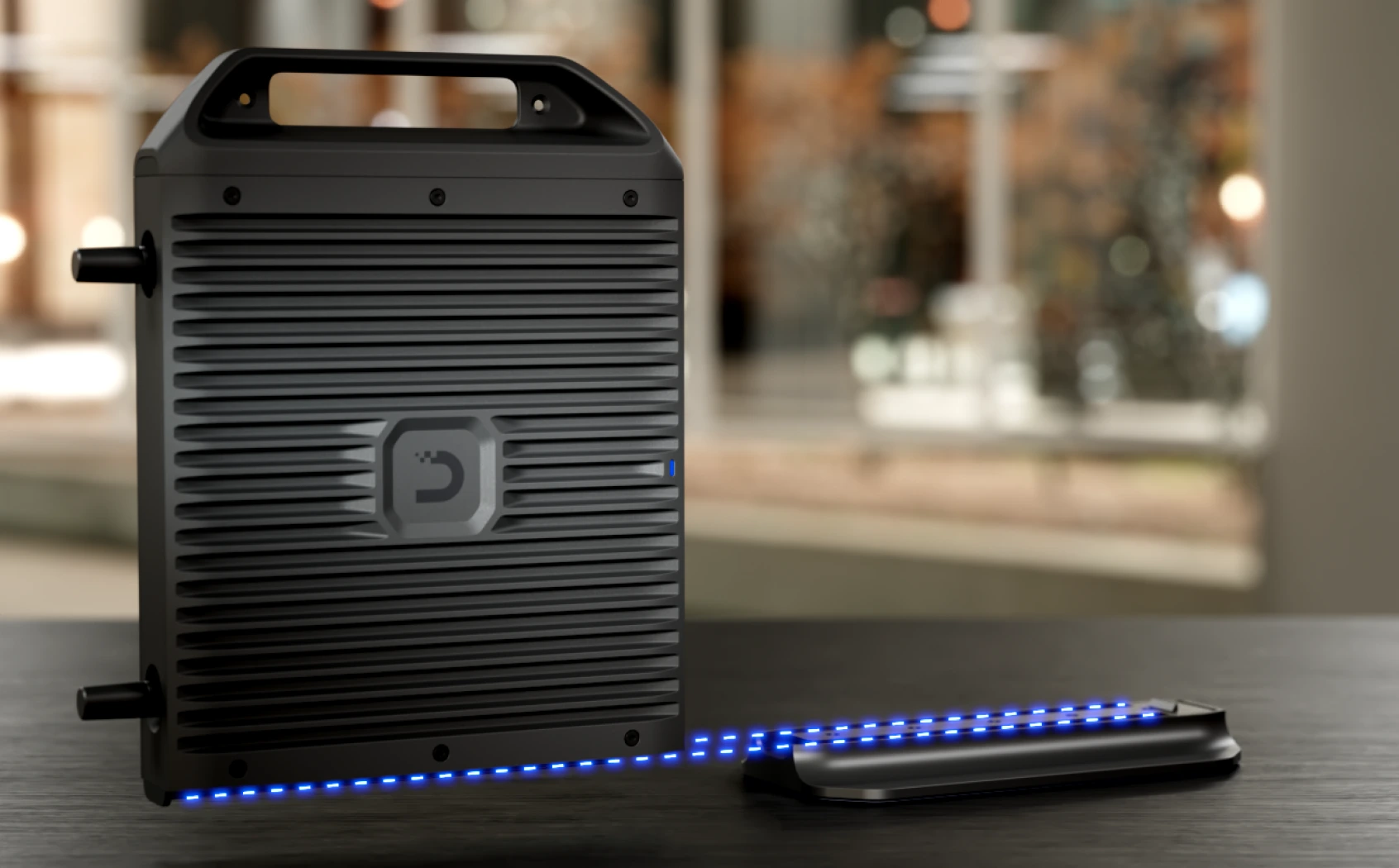

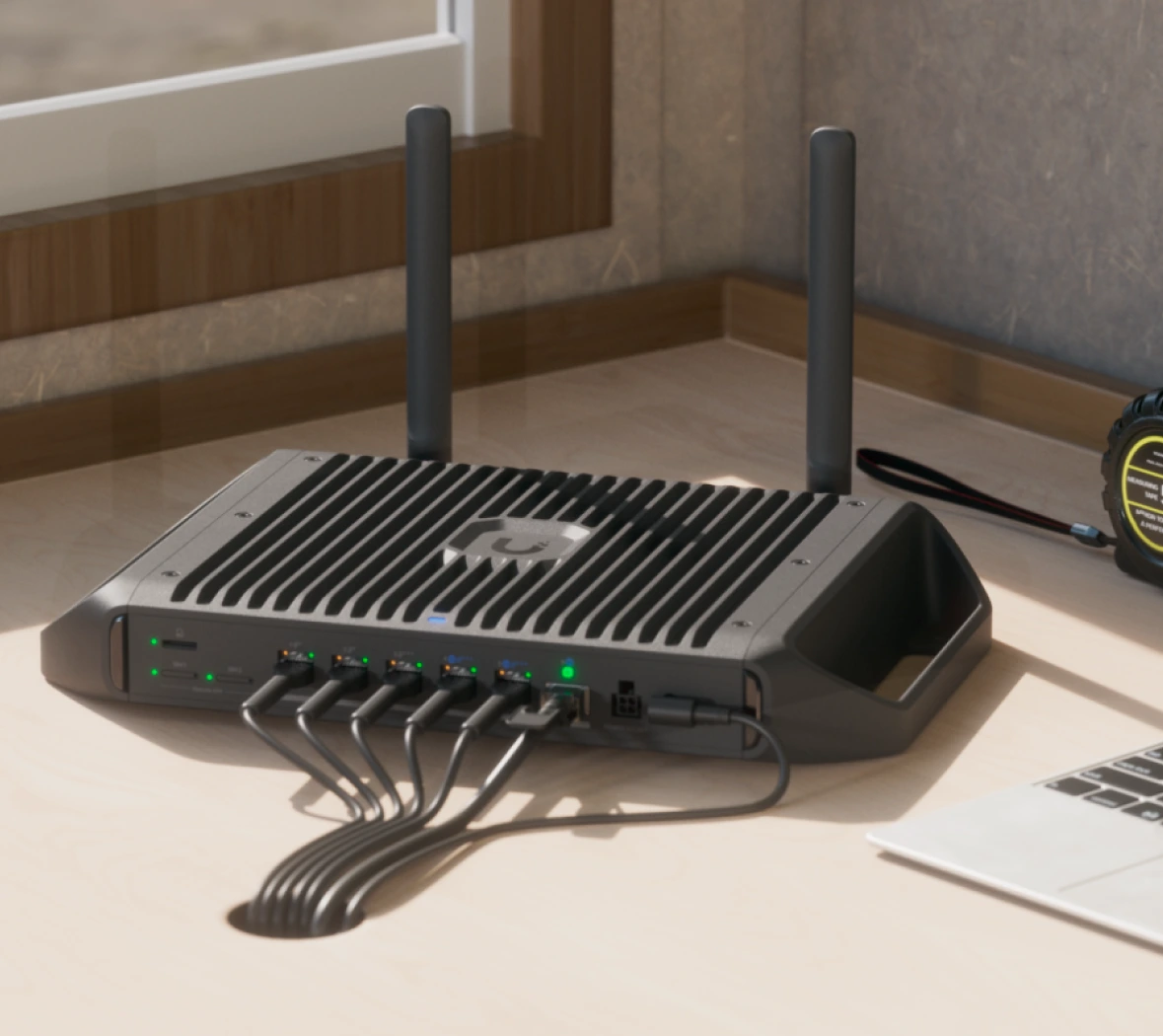

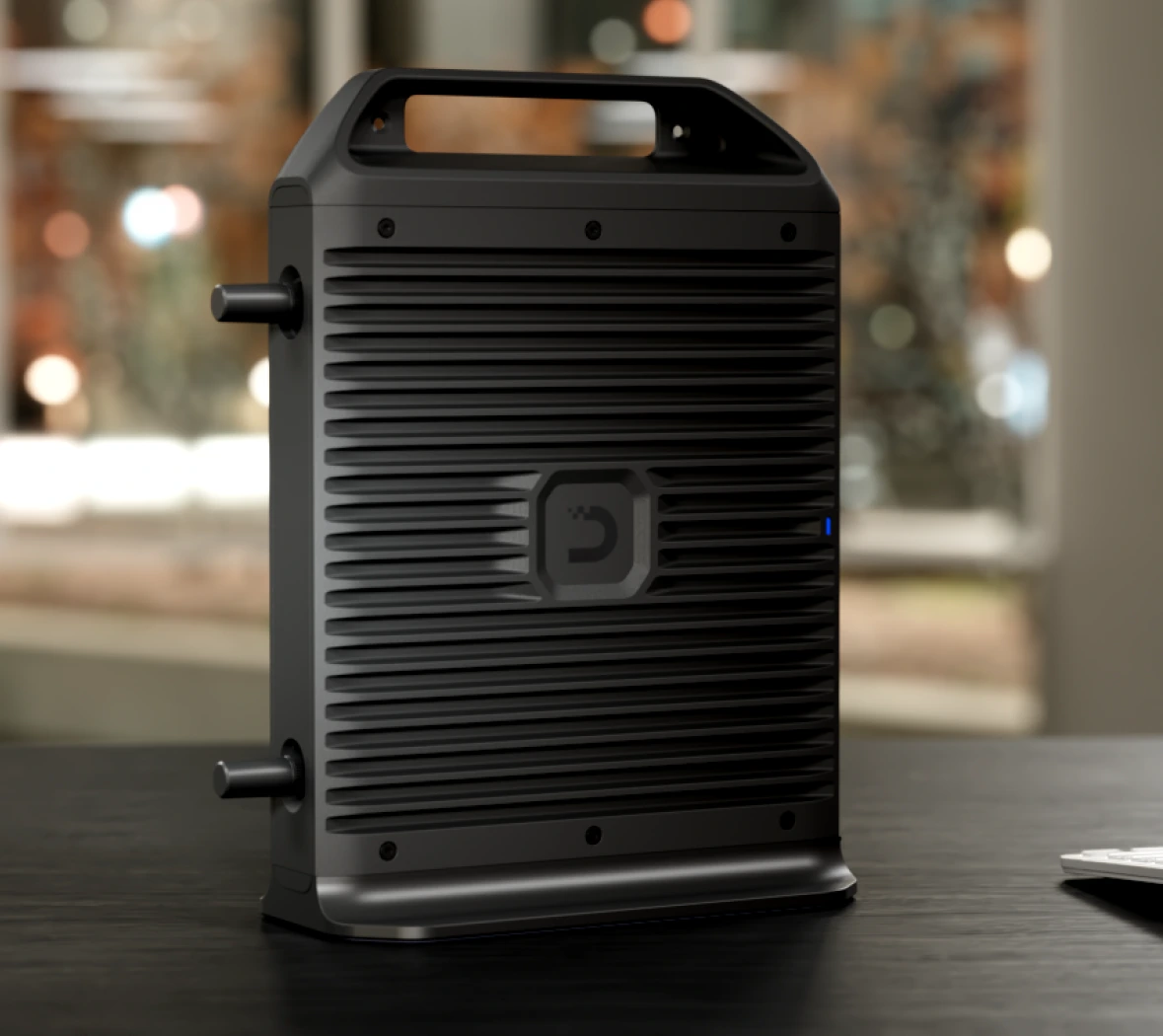

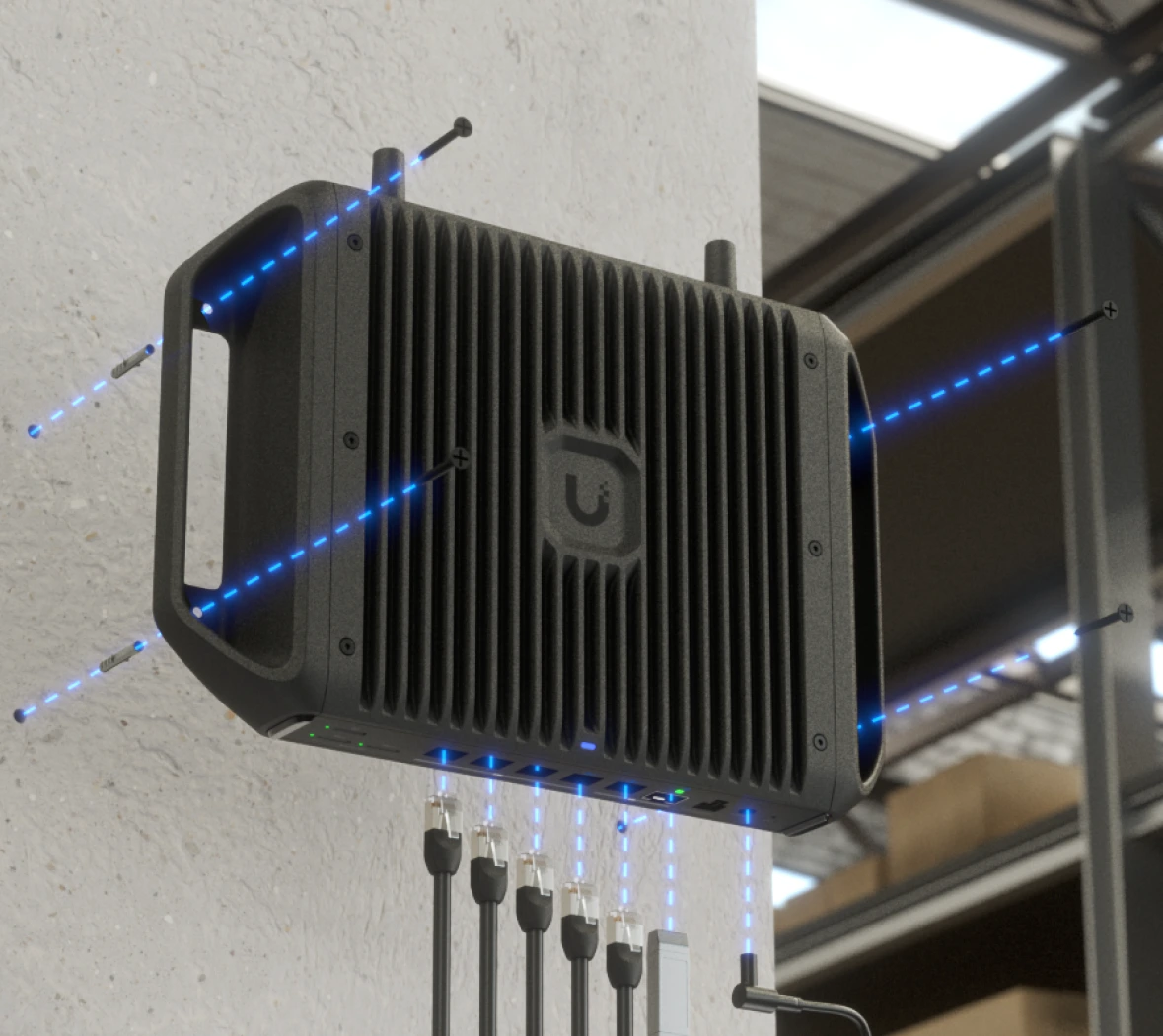

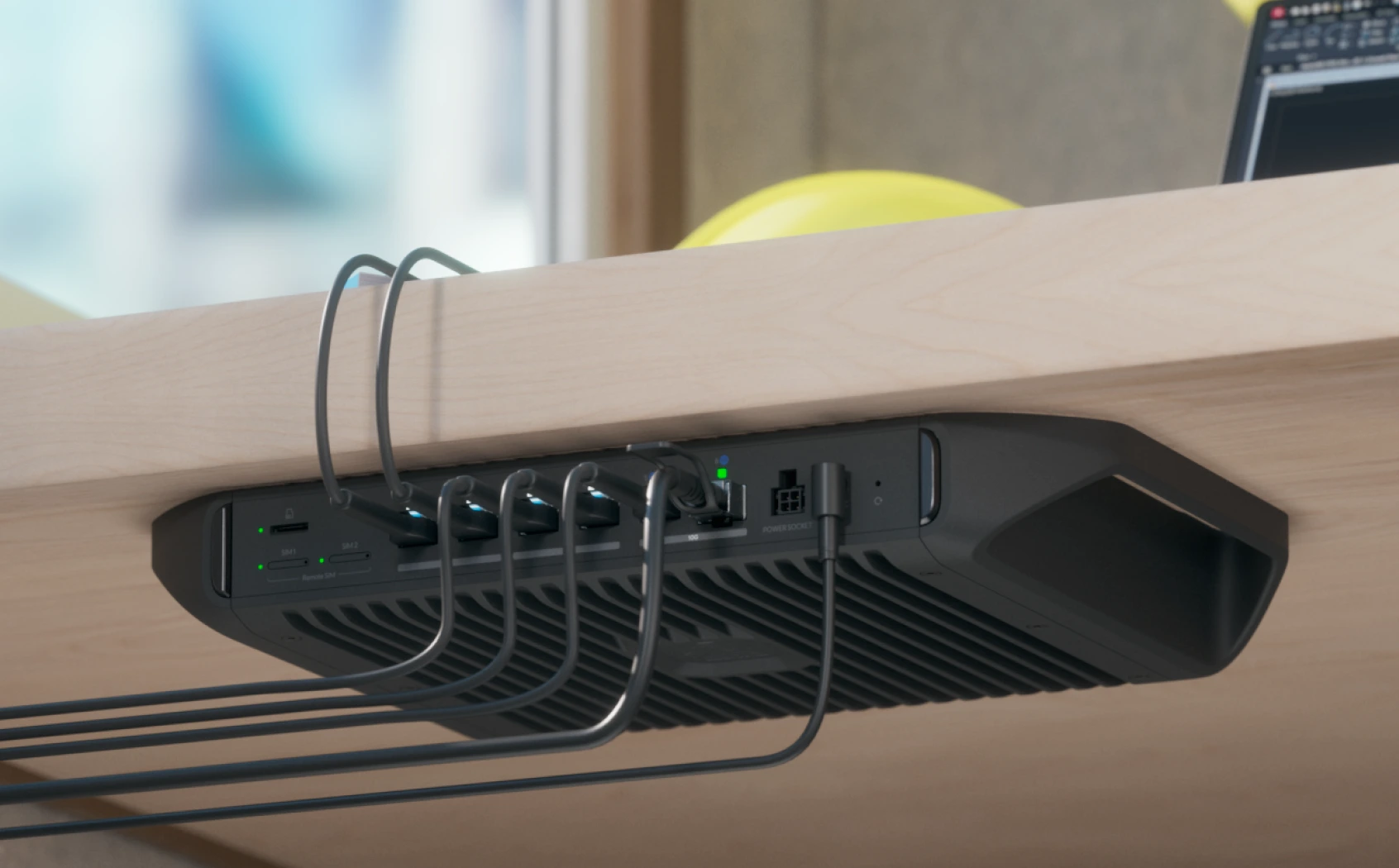

Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately)

Coverage Area

115 m² (1,250 ft²)

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

✓

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic ✓
IPsec ✓
OpenVPN ✓

VPN Server

Identity Endpoint One-Click VPN ✓
Teleport Zero-Configuration VPN ✓
WireGuard ✓
OpenVPN ✓
L2TP ✓

VPN Client

OpenVPN ✓
WireGuard ✓

Networking

Multi-WAN Load Balancing

✓

Dynamic Routing

OSPF ✓
BGP ✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

4,000

Virtual Network Override

✓

All Traffic Flows

—

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Throughput

5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

5 GHz: Stub antenna: 5 dBi Terminal (Omni) antenna: 6 dBi
2.4 GHz: Stub antenna: 3 dBi Terminal (Omni) antenna: 6 dBi

Max. TX Power

5 GHz: 26 dBm
2.4 GHz: 23 dBm

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

NVR Storage

Pre-installed 128 GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

DC input: 270W
ATX power: 75W

Max. PoE Wattage per Port by PSE

PoE+: 30W
PoE+++: 90W

Voltage Range PoE Mode

50-57V

Max. Power Consumption

28W (Excluding PoE output)

Power Method

(1) DC Input (350W PSU)
(1) ATX power (48V)

Power Supply

54V DC, 350W (Adapter included) ATX power (48V)

Supported Voltage Range

100–240V AC

Heat Dissipation

95 BTU/hr (Excluding PoE output)

Processor

Quad-core ARM® Cortex®-A73 at 2.2 GHz

System Memory

3 GB

Weight

Device: 2.4 kg (5.3 lb)
Table stand: 321 g (11.3 oz)

Enclosure Material

Device: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber

Management

Ethernet
Bluetooth

LEDs

Ethernet ✓
SFP+ ✓
System ✓
MicroSD ✓
MicroSD ✓

Button

(1) Factory reset
(2) Handle release buttons

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Software

Application Requirements

Mobile App: UniFi iOS™: Version 10.32.0 and later UniFi Android™: Version 10.35.0 and later

UniFi Patch Cable

Ultra-thin patch cable with GbE support and flexible, bendable boots for enhanced insta...

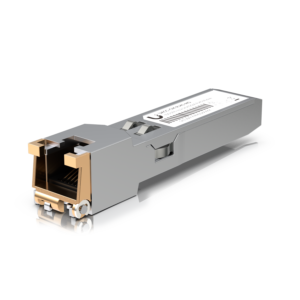

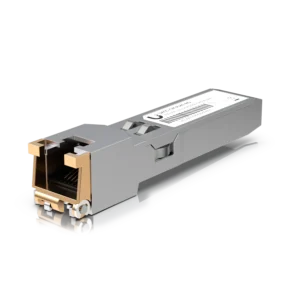

SFP+ to RJ45 Adapter

SFP+ to RJ45 transceiver module that supports 10G connections up to 100 m.

UniFi Premium Patch Cable

Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.

10G Single-Mode Optical Module

10G Direct Attach Cable

10G Bidirectional Single-Mode Optical Module

UniFi Etherlighting Patch Cable

Nano-thin patch cable with 10 GbE support, designed to showcase Etherlighting™ effects.

Cloud Gateway Industrial

Product successfully added to the Quote List

UniFi Patch Cable

SFP+ to RJ45 Adapter

UniFi Premium Patch Cable

10G Single-Mode Optical Module

10G Direct Attach Cable

10G Bidirectional Single-Mode Optical Module

UniFi Etherlighting Patch Cable

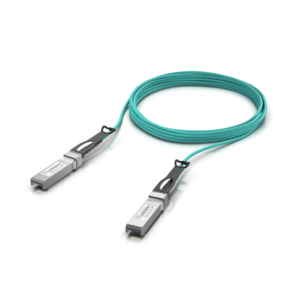

10G Long-Range Direct Attach Cable

SFP+ to RJ45 10GbE

10G Multi-Mode Optical Module

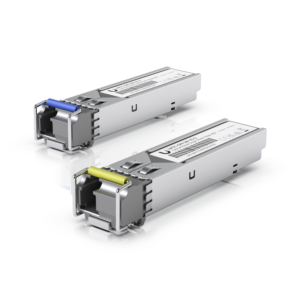

1G Bidirectional Single-Mode Optical Module

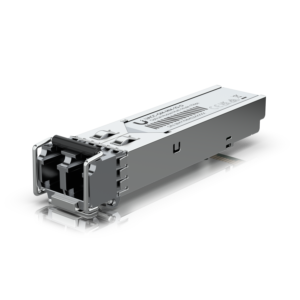

1G Multi-Mode Optical Module
